Wireless Communication Network — Introduction, Specifications, Applications, and User Guide
The Wireless Communication Network is a cutting-edge solution designed to enable seamless, high-speed, and reliable connectivity without the need for wired infrastructure.
It uses advanced radio frequency (RF) transmission, digital modulation, and networking protocols to transmit data, voice, and multimedia content over long distances.
As modern industries increasingly demand real-time data exchange and mobility, wireless communication networks have become the foundation for applications such as industrial automation, IoT systems, public safety, defense, energy, and transportation.
Our wireless communication network system combines scalable architecture, intelligent routing, encryption security, and adaptive signal optimization—providing a robust and cost-effective communication backbone for mission-critical operations.
High Data Throughput: Supports multi-gigabit transfer rates.
Wide Coverage: Works efficiently over extended distances with low latency.
Flexible Deployment: No physical cabling required.
Multi-Platform Compatibility: Integrates with IoT, LTE, Wi-Fi, and satellite systems.
Enhanced Security: End-to-end encryption with secure key management.
Energy Efficient: Designed for low-power and green communication operations.
| Parameter | Specification |
|---|---|
| Model Series | WCN-500 / WCN-900 / WCN-Pro |
| Frequency Range | 400 MHz – 6 GHz (configurable) |
| Modulation Types | QPSK / 16-QAM / 64-QAM |
| Data Rate | Up to 1.5 Gbps |
| Transmission Range | 1 – 50 km (depending on terrain) |
| Latency | < 10 ms |
| Channel Bandwidth | 1.25 / 5 / 10 / 20 MHz selectable |
| Network Type | Mesh / Star / Point-to-Multipoint |
| Encryption Protocols | AES-256 / WPA3 / SSL / VPN |
| Antenna Type | Omni-directional / Directional / Sector |
| Power Supply | DC 12–48V / AC 110–240V |
| Operating Temperature | -40°C to +65°C |
| Ingress Protection | IP67 Weatherproof |
| Power Consumption | < 50W typical |
| Mounting Options | Pole, wall, or vehicle mount |
| Certifications | CE, FCC, RoHS, ISO9001, EN50121 |
Equipped with high-performance RF modules and adaptive beamforming technology, the system achieves strong signal penetration and stable long-distance communication.
Supports mesh, point-to-point, and point-to-multipoint topologies, allowing flexible configuration for various field conditions.
The system features self-healing mesh routing and Quality of Service (QoS) prioritization to ensure uninterrupted communication for critical data streams.
Multi-layer encryption and authentication mechanisms, including VPN tunnels and firewall protection, safeguard data integrity across all network nodes.
Expandable to accommodate new nodes or devices, suitable for enterprise networks, emergency communication, and IoT infrastructures.
Integrates energy-efficient hardware and adaptive sleep modes, reducing energy consumption by up to 30% compared to conventional systems.

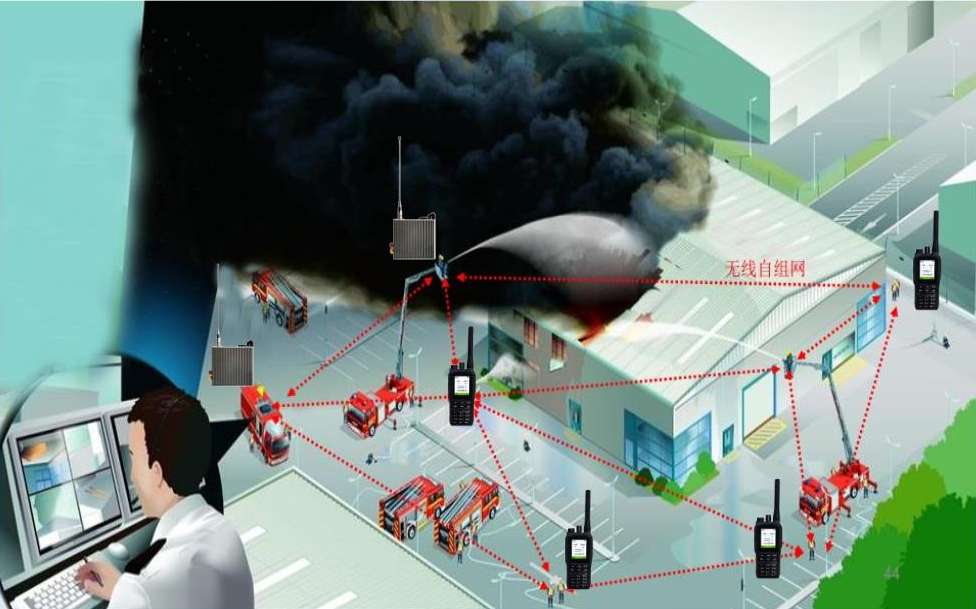

In situations where traditional communication infrastructure is damaged, the wireless communication network can be rapidly deployed to restore voice and data connectivity for emergency teams and relief organizations.
Used in mining, oil & gas fields, and power stations, providing reliable connections for SCADA systems, sensor networks, and remote monitoring.
Supports military-grade encryption and mobile ad-hoc networking, enabling secure real-time coordination among tactical units in the field.
Serves as the backbone of intelligent traffic systems, environmental monitoring, and public Wi-Fi networks, offering seamless connectivity across urban areas.
Facilitates IoT-based smart agriculture, enabling data-driven crop management and climate monitoring in remote regions.
Provides stable broadband access for universities, industrial parks, and remote business facilities, ensuring fast and efficient internal communication.
Wireless Communication Unit (Main Device)
Antenna Kit (Omni or Sector)
Power Supply Adapter (AC/DC)
Mounting Brackets and Bolts
Ethernet Cable (Cat6)
User Manual and Quick Start Guide
Site Selection
Choose an elevated position free from major obstacles for optimal signal propagation.
Antenna Mounting
Fix antennas securely using the provided mounts. Adjust direction for maximum signal gain.
Power Connection
Connect the DC or AC power supply as per the device specifications.
Network Connection
Use the Ethernet port to connect the device to a local network or router.
System Configuration
Access the web interface via browser (default IP: 192.168.1.1).
Configure SSID, password, frequency band, and security options.
Performance Testing
Conduct a ping test or throughput measurement to ensure connectivity and optimal performance.
Maintain line-of-sight (LOS) between nodes for maximum range.
Avoid placing antennas near metal structures or high-voltage lines.
Enable automatic channel scanning to minimize interference.
Regularly update firmware via the official management platform.
| Task | Recommended Frequency | Purpose |
|---|---|---|
| Firmware Update | Every 6 months | Security and performance optimization |
| Antenna Inspection | Monthly | Ensure connection and orientation integrity |
| Power Cable Check | Quarterly | Prevent corrosion or wear |
| Data Backup | Monthly | Preserve configuration and network logs |
| Cleaning | Monthly | Remove dust, sand, and other debris |
Our global service team offers:
24/7 remote support
On-site installation training
Software updates and configuration backup
Network optimization consultation
The Wireless Communication Network complies with international environmental protection and energy standards:
RoHS Directive: Restricts hazardous materials.
WEEE Directive: Supports recycling and waste management.
ISO14001: Environmental management certification.
Low RF Emission: Meets ICNIRP and FCC safety standards.
Power Efficiency: Smart power management reduces energy waste by up to 25%.
Safety Precautions:
Do not expose the unit to open flames or water immersion.
Ensure grounding for lightning protection.
Disconnect power before maintenance or hardware replacement.
Use certified cables and connectors only.
A: Depending on terrain and antenna type, it supports distances from 1 km (urban) to 50 km (rural) under line-of-sight conditions.
A: Up to 200 users or devices can connect per base node, scalable through mesh extension.
A: Yes. It can form an ad-hoc or private network without relying on external internet connections.
A: Absolutely. It supports standard IEEE and 3GPP interfaces, ensuring seamless integration.
A: Reposition antennas for better line-of-sight, reduce obstructions, or add repeater nodes to enhance coverage.
A: All communication channels are protected with AES-256 encryption and VPN tunneling, ensuring maximum security.
A: Typical setup can be completed within 20–30 minutes by two trained personnel.
A: Yes, users can manage and monitor the network remotely via the cloud management platform.
Store the device in a dry, ventilated environment between -10°C and +40°C.
Keep away from strong magnetic fields or corrosive chemicals.
Charge internal batteries every 3 months if unused.
Use anti-shock packaging or flight cases for long-distance transport.
Avoid dropping or mechanical vibration during shipment.
Label with “Fragile – Electronic Equipment” for safety compliance.
| Category | Description |
|---|---|
| Performance | High-speed, low-latency wireless connectivity |
| Scalability | Easily expandable to cover large or complex areas |
| Security | AES encryption, VPN tunneling, and firewall protection |
| Portability | Lightweight and easy to deploy in field operations |
| Energy Efficiency | Smart power management system |
| Compatibility | Integrates with LTE, IoT, Wi-Fi, and satellite systems |
| Reliability | Proven stability under extreme environmental conditions |
The Wireless Communication Network represents a new generation of intelligent, scalable, and secure communication systems designed for both industrial and public applications.
It offers unmatched flexibility, mobility, and efficiency, eliminating the limitations of traditional wired networks.
Whether it is used for emergency communication, industrial automation, defense, or smart city projects, this solution ensures continuous connectivity and real-time information flow — even in the most challenging environments.
Backed by international certifications, advanced encryption technologies, and energy-efficient performance, the Wireless Communication Network is a future-ready communication platform that meets the needs of modern digital infrastructure.

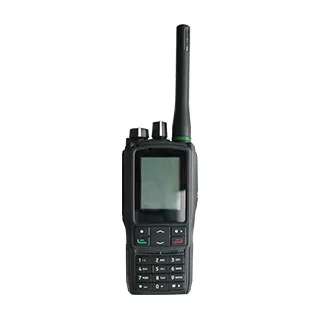

The walkie-talkie is a reliable two-way communication device widely used in personal, commercial, and industrial applications. With advanced design and user-friendly functions, it allows instant voice transmission without the need for a mobile network.
Instant Communication: Press-to-talk (PTT) functionality ensures fast voice transmission.
Durable Design: Built to withstand outdoor and industrial environments.
Long Battery Life: Optimized for extended operation in the field.
Compact and Portable: Lightweight design for easy carrying.
Clear Audio: Noise reduction technology provides stable sound quality.
| Specification | Details |
|---|---|
| Frequency Range | UHF / VHF options available |
| Communication Distance | Up to 3–10 km (depending on model) |
| Battery Capacity | 1500–3000 mAh rechargeable |
| Power Output | 1–5W adjustable |
| Operating Temperature | -20°C to +50°C |
| Dimensions | Compact handheld design |
With stable performance and reliable specifications, the walkie-talkie is an essential tool for users who require efficient and uninterrupted communication in different environments.
The Internet Radio is more than just a device for entertainment. With advanced connectivity and smart features, it offers diverse applications and benefits across multiple industries. From personal listening to professional communication, it ensures reliable access to global content.
Personal Entertainment – Enjoy music, news, and cultural programs from thousands of online stations.
Education & Training – Access international lectures, podcasts, and cultural content for study.
Business & Enterprise – Used in logistics, events, and construction sites for communication and coordination.
Emergency Response – Provides a reliable channel during disasters or infrastructure failures.
Tourism & Outdoor Activities – Compact and portable, making it ideal for camping, hiking, and travel.
Unlimited Access: Tune in to global stations without frequency restrictions.
Portability: Lightweight, easy to carry anywhere.
Reliable Audio: Digital processing ensures stable, interference-free sound.
Multi-Functional: Supports Bluetooth, apps, and GPS.
Eco-Friendly: Energy-efficient design with rechargeable batteries.
The Internet Radio provides unmatched versatility for consumers, businesses, and organizations. Its global access and practical benefits make it a dependable choice for modern communication and entertainment.
