Wireless Ad Hoc Emergency Communication System

1. Product Overview

The Wireless Ad Hoc Emergency Communication System is a cutting-edge solution designed to provide reliable, decentralized, and real-time communication in critical situations where conventional networks fail.

Unlike traditional communication systems that depend on centralized infrastructure such as base stations, cell towers, or satellite links, this system forms a self-organizing, self-healing ad hoc network. Every terminal or radio node can act as both a transmitter and a relay, ensuring that communication remains active even if part of the network is damaged or isolated.

The system is developed for emergency response, public safety, disaster relief, military operations, and temporary field deployment. It offers voice, data, and video transmission capabilities across dynamically formed mesh networks, ensuring seamless collaboration between rescue teams and command centers.

By integrating IP networking, digital radio, GPS positioning, and AES encryption, the Wireless Ad Hoc Emergency Communication System delivers secure, long-range, and high-capacity connectivity—a crucial lifeline in disaster zones or mission-critical scenarios.

2. Technical Specifications

3. Key Features

3.1 Fully Decentralized Network

The system uses Ad Hoc Mesh Architecture, allowing every terminal to connect directly without relying on a base station. When one node fails, others automatically reroute data, ensuring self-healing and uninterrupted communication.

3.2 Multi-Hop Relay Capability

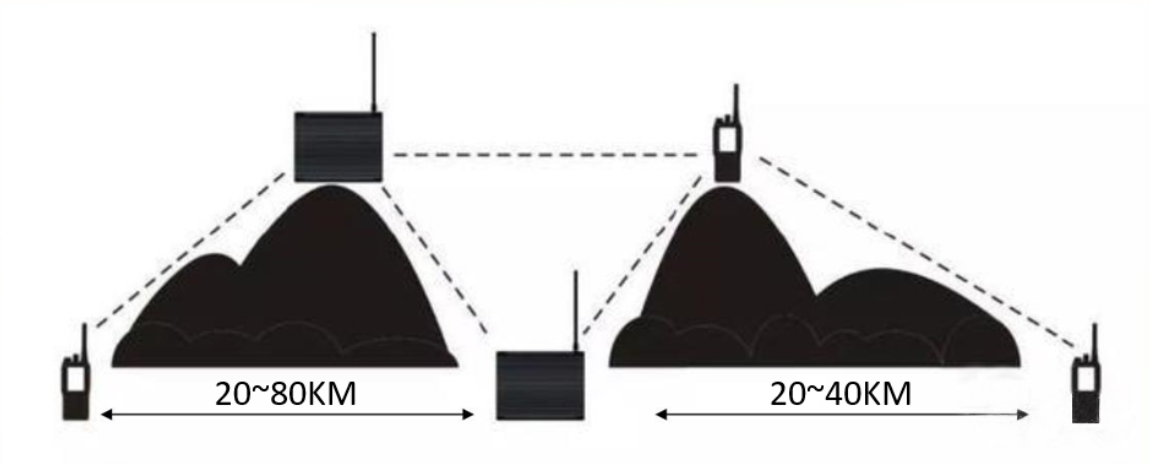

Each device serves as a repeater, extending the range of communication. The more nodes are deployed, the larger and more stable the network becomes.

3.3 Real-Time Voice, Video, and Data Transmission

It supports simultaneous audio and data communication, enabling live video feeds, GPS tracking, and sensor data exchange between command and field teams.

3.4 Plug-and-Play Deployment

No pre-configuration or central control is needed. The system automatically discovers nearby nodes and builds a secure communication network within seconds.

3.5 High Security and Reliability

Using AES 256-bit encryption and frequency hopping spread spectrum (FHSS), the system ensures communication confidentiality and strong resistance to interference or jamming.

3.6 Portable and Rugged Design

The units are built with industrial-grade materials, IP67 protection, and shock-resistant housings, making them suitable for harsh environments.

3.7 Versatile Power Options

Can be powered by AC mains, DC vehicle adapters, or battery packs, ensuring flexible operation in field missions.

3.8 Scalable Network Architecture

Supports up to 128 nodes and can integrate with satellite, LTE, or IP networks for hybrid communication coverage.

4. Application Scenarios

4.1 Disaster Relief Operations

In natural disasters like earthquakes, floods, or wildfires, conventional mobile networks are often destroyed. The Ad Hoc Emergency Communication System allows rescue teams, medical units, and command centers to communicate immediately without infrastructure.

4.2 Public Safety and Law Enforcement

Police, firefighters, and homeland security agencies use the system for mission-critical communication, ensuring reliable voice and data exchange even in urban canyons or remote areas.

4.3 Military and Defense Operations

Provides tactical communication in battlefield environments. Soldiers and vehicles form mobile mesh networks, enabling encrypted coordination without exposure to central network vulnerabilities.

4.4 Event Management and Large Gatherings

In temporary events such as marathons, concerts, or international summits, the system establishes temporary wireless communication coverage, ensuring smooth coordination and security control.

4.5 Industrial and Mining Applications

In mining sites or oil fields where traditional coverage is weak, the system forms local private networks for communication, monitoring, and safety alerts.

4.6 Remote Areas and Expeditions

For mountain exploration, ocean expeditions, or desert operations, the system guarantees connectivity where no telecom infrastructure exists.

5. System Components

6. Operation Guide

6.1 System Setup

1. Unpack and Inspect: Verify all units and antennas are undamaged.

2. Install Antennas: Connect antennas to each node securely.

3. Power On Units: Press the power button; the LED indicators will display system status.

4. Automatic Network Formation: Within 10–20 seconds, nodes automatically form an ad hoc network.

5. Configure via Control Terminal: Access settings through the laptop or tablet interface to name nodes, set IDs, and assign roles.

6.2 Communication Operation

• Voice Transmission: Press the PTT (Push-to-Talk) button to transmit; release to listen.

• Video Transmission: Activate the camera module; real-time feed will be shared across the network.

• GPS Tracking: Each node reports position data to the command center automatically.

• File Sharing: Use IP data mode for transmitting documents, images, or reports.

6.3 Network Extension

To expand coverage:

1. Place additional nodes along the communication path.

2. Ensure at least 1 km spacing overlap for reliable multi-hop routing.

3. Verify link quality using the network management interface.

6.4 Power Management

• Fully charge the battery before deployment.

• Switch to low-power mode when idle.

• Replace or recharge after 10–12 hours of continuous operation.

7. Maintenance and Safety

Safety Guidelines

• Do not open or disassemble units without authorization.

• Avoid contact with water beyond IP67 protection limits.

• Keep away from flammable materials during charging.

• Operate only with certified accessories.

8. Environmental and Energy Efficiency Standards

The Wireless Ad Hoc Emergency Communication System is built following international environmental and energy regulations:

• RoHS compliant – Free from hazardous substances like lead or mercury.

• Low Power Consumption Design – Intelligent power management extends field battery life.

• Recyclable Materials – Enclosure and battery components meet recycling standards.

• Temperature and Vibration Testing – Ensures consistent performance in extreme environments.

9. Common Questions (FAQ)

Q1: How does the system work without base stations?

Each unit acts as a router and repeater. When two or more units are powered on, they automatically discover and connect to each other, forming a self-organizing mesh network that doesn’t need infrastructure.

Q2: What is the typical communication distance?

Each node can cover 5–15 km depending on terrain and power output. With multi-hop relay, the total range can exceed 100 km.

Q3: Can it transmit video and data besides voice?

Yes. It supports real-time video, GPS, and IP data simultaneously over the same network.

Q4: What happens if one node fails?

The system automatically reroutes communication paths through other nodes, ensuring continuous connectivity.

Q5: Is the communication secure?

Absolutely. It uses AES-256 encryption and frequency hopping, providing top-level protection against interception.

Q6: Can it integrate with other communication systems?

Yes, the system can connect with LTE, satellite, or IP-based communication networks for hybrid operation.

Q7: How long can it operate on battery power?

A fully charged battery lasts 10–12 hours of continuous operation or 24+ hours in standby mode.

Q8: Is it suitable for maritime or mountain use?

Yes. The system’s rugged design and IP67 protection make it ideal for harsh environments.

Q9: Can users expand the network by adding nodes?

Yes. Simply power on additional units within range, and they will automatically join the existing network.

Q10: What certifications does it meet?

All products are certified under CE, FCC, RoHS, and ISO9001, ensuring compliance with international standards.

10. Advantages Summary

11. Conclusion

The Wireless Ad Hoc Emergency Communication System revolutionizes field communication by eliminating the need for centralized infrastructure. Its self-organizing mesh design, encrypted transmission, and multi-hop relay features make it the perfect communication backbone in disaster zones, military missions, and industrial operations.

With robust performance, scalability, and reliability, it ensures that teams stay connected — anytime, anywhere, even under the harshest conditions.

The system is more than just communication equipment; it is a lifeline for emergency management, a command and control enabler, and a critical asset for national safety.
